How Your Mirrors Are Made — Precision in Every Process
See our data-driven mirror manufacturing process: 6-stage quality control, 99.2% pass rate, 120K pcs monthly capacity. ISO 9001 & BSCI certified. From raw glass to finished product — transparency you can trust.
Build Your Dream
25 Years Of Undefeated Success
Each mirror, through 127 quality control points, can be traced from raw materials to finished products throughout the entire process
120,000+
Monthly production capacity (pieces)
99.2%
First Pass Yield
45
Standard delivery time (days)
98.7%
Ocean freight integrity rate
Our 6-Stage Manufacturing Protocol
In these 14 years, we have dedicated ourselves to one thing: to make every mirror a source of pride for your brand.
Stage 1: Glass Sourcing & Preparation
·Glass raw film grading: automotive grade float glass, iron content<0.1%, no color cast in imaging, clarity improved by 15%
·Thickness tolerance control: 3-6mm specification, ± 0.2mm accuracy, rejecting common market fluctuations of ± 0.5mm
·Environmentally friendly silver mirror technology: Copper free silver mirror technology, salt spray test for 480 hours, 5-year non blackening, guaranteed quality assurance
·Incoming Inspection (IQC): Sampling rate of 10% per batch, defect rate<0.3%, interception at the source, no flow into the production line
Stage 2: CNC Machining
·Water jet cutting: irregular contour, accuracy ± 0.5mm, industry average ± 1.0mm

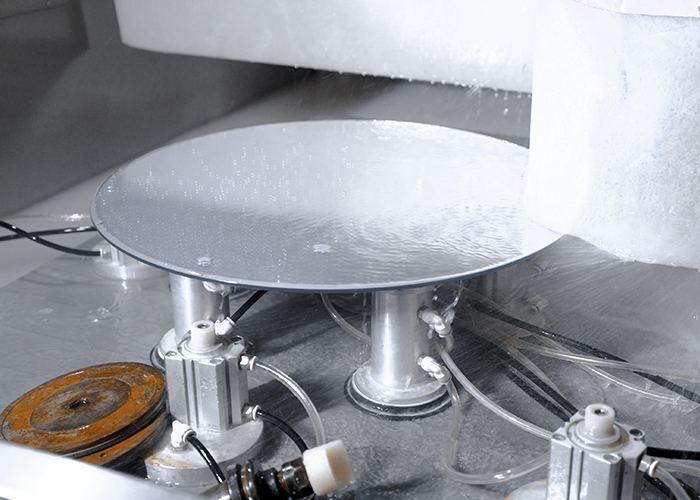

·CNC edge grinding: straight edge/round edge/duckbill edge, roughness Ra ≤ 0.8 μ m, smooth hand feel without thorns
·Drilling positioning: hole deviation ≤ 0.3mm, edge collapse ≤ 0.5mm, zero installation error
·Process Inspection (IPQC-1): Conduct inspections every 2 hours, with a 100% full inspection rate for dimensions, and a 100% non sampling inspection rate
Stage 3: From Raw Glass to Mirror Perfection
·Cleaning activation: Ultrasonic cleaning, conductivity<10 μ s/cm, coating adhesion foundation
·Vacuum silver plating: silver layer thickness ≥ 700mg/㎡, uniformity ± 5%, reflectivity ≥ 95%
·Copper layer/paint layer protection: copper free process: passivation layer+epoxy primer, environmentally friendly and durable dual standards
·Drying and curing: 80 ℃ × 30min, paint film hardness ≥ 2H, scratch resistance test passed
·Process Inspection (IPQC-2): Coating Adhesion Test Level 5B, 100% Full Inspection
Stage 4: LED Integration & Smart Assembly
·SMT SMT patch: 0201-1206 package, accuracy ± 0.05mm, AOI optical inspection+manual re inspection
·Drive power assembly: Constant current accuracy ± 3%, efficiency ≥ 85%, full load aging for 4 hours

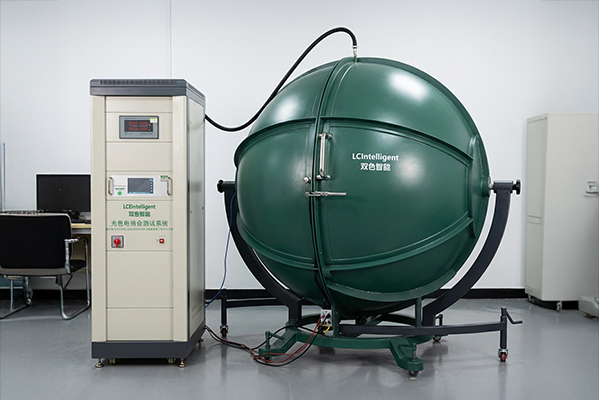

·LED module integration: CRI>95, color temperature adjustable from 2700K to 6500K, integrating sphere spectrometer for 100% testing
·Intelligent control assembly: touch/sensing/Bluetooth module integration, full functional inspection+ESD protection
·Process Inspection (IPQC-3): Electrical Safety: Withstand voltage 3000V/60s, leakage current<0.25mA

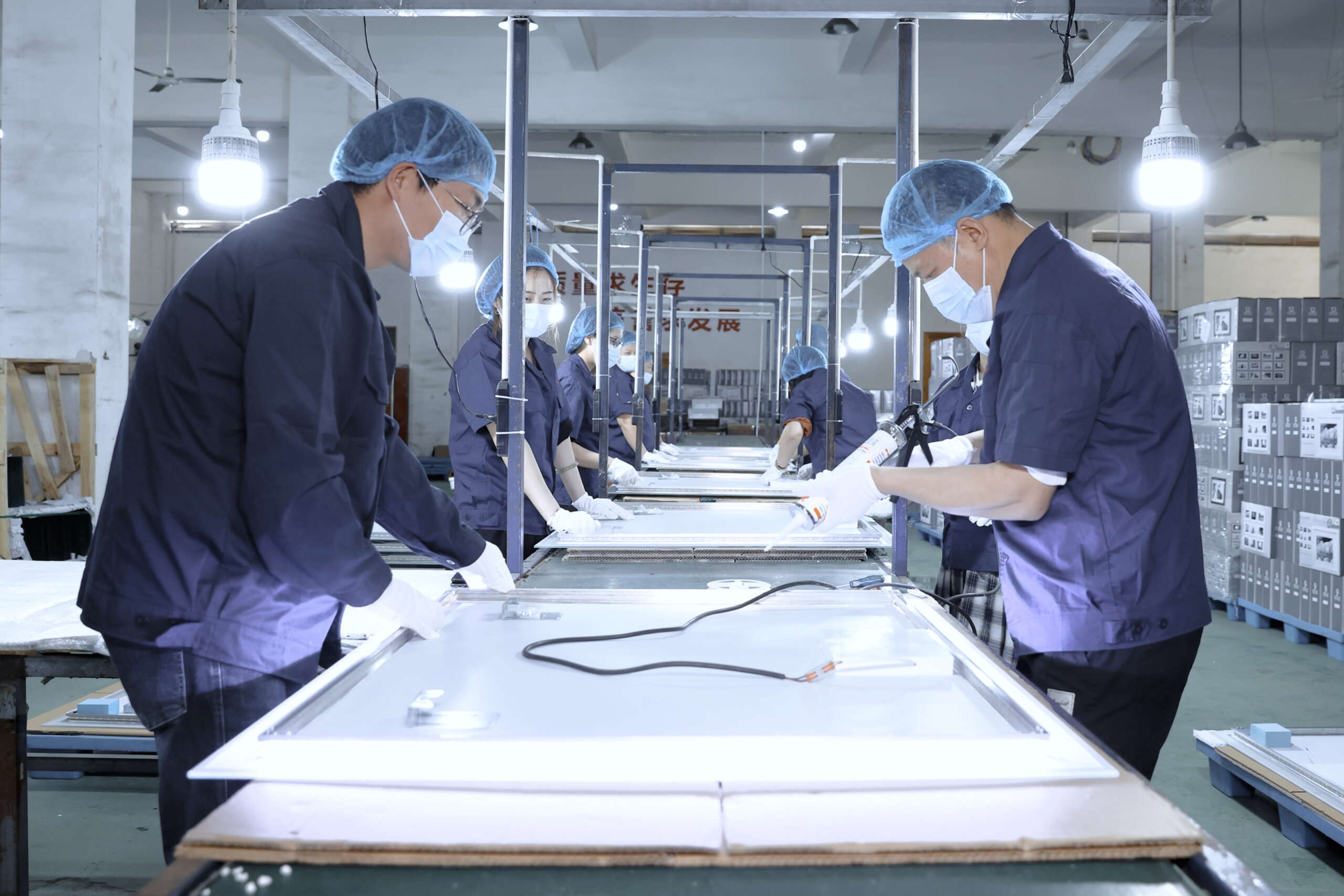

Stage 5: Final Assembly & Quality Hardening

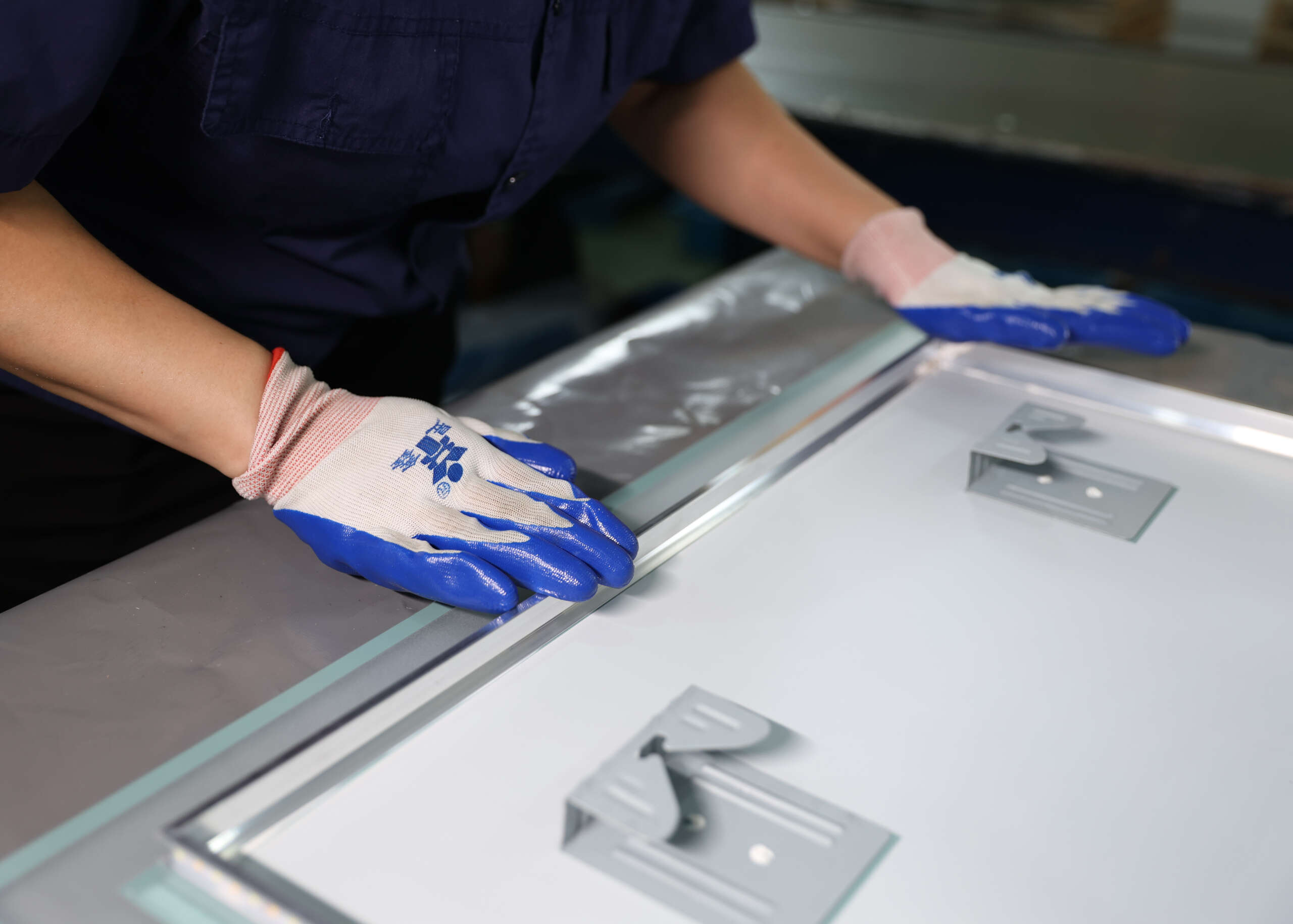

·Mirror frame assembly: buckle+screw double fixation, torque 1.2N · m, no looseness after 50 push-pull tests
·Optical calibration: Light source uniformity ≥ 85%, no dark areas/glare, darkroom visual inspection+illuminance meter measurement
·Functional testing: dimming/memory/defogging/Bluetooth full function, 100% automated testing bench

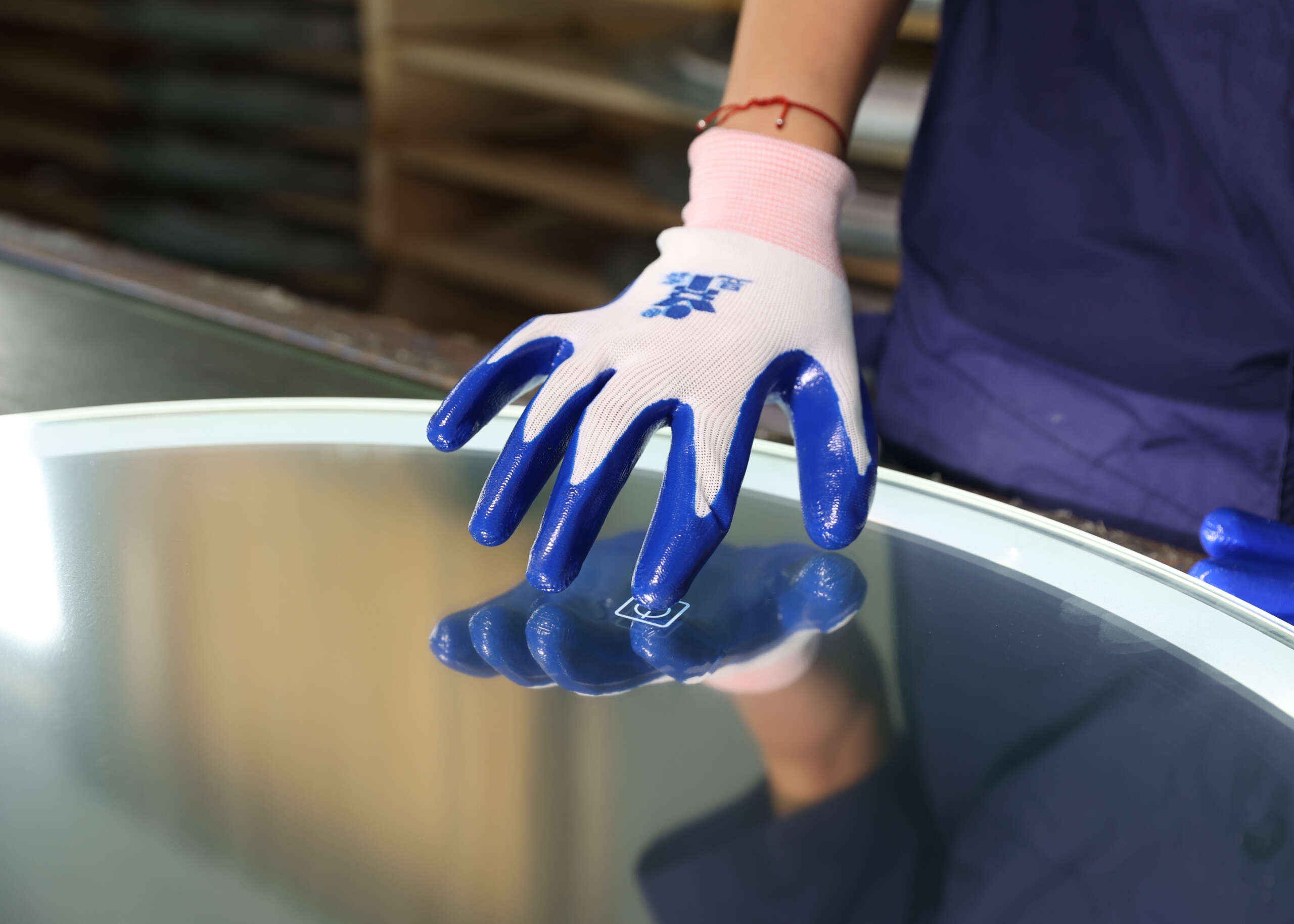

·Appearance inspection: 0.5m visual inspection, AQL 0.65, scratch/bubble/color difference zero tolerance
·Finished product inspection (OQC): 4-hour aging test+packaging integrity, unboxing simulation+drop pre inspection
Stage: Protection, Packaging & Logistics
·Internal protection: EPE pearl cotton customized lining with a density of 28kg/m ³, no damage from a drop of 1.2m
·Medium packaging: color box+Poly Dragon, bearing 50kg, stacked in 3 layers without deformation

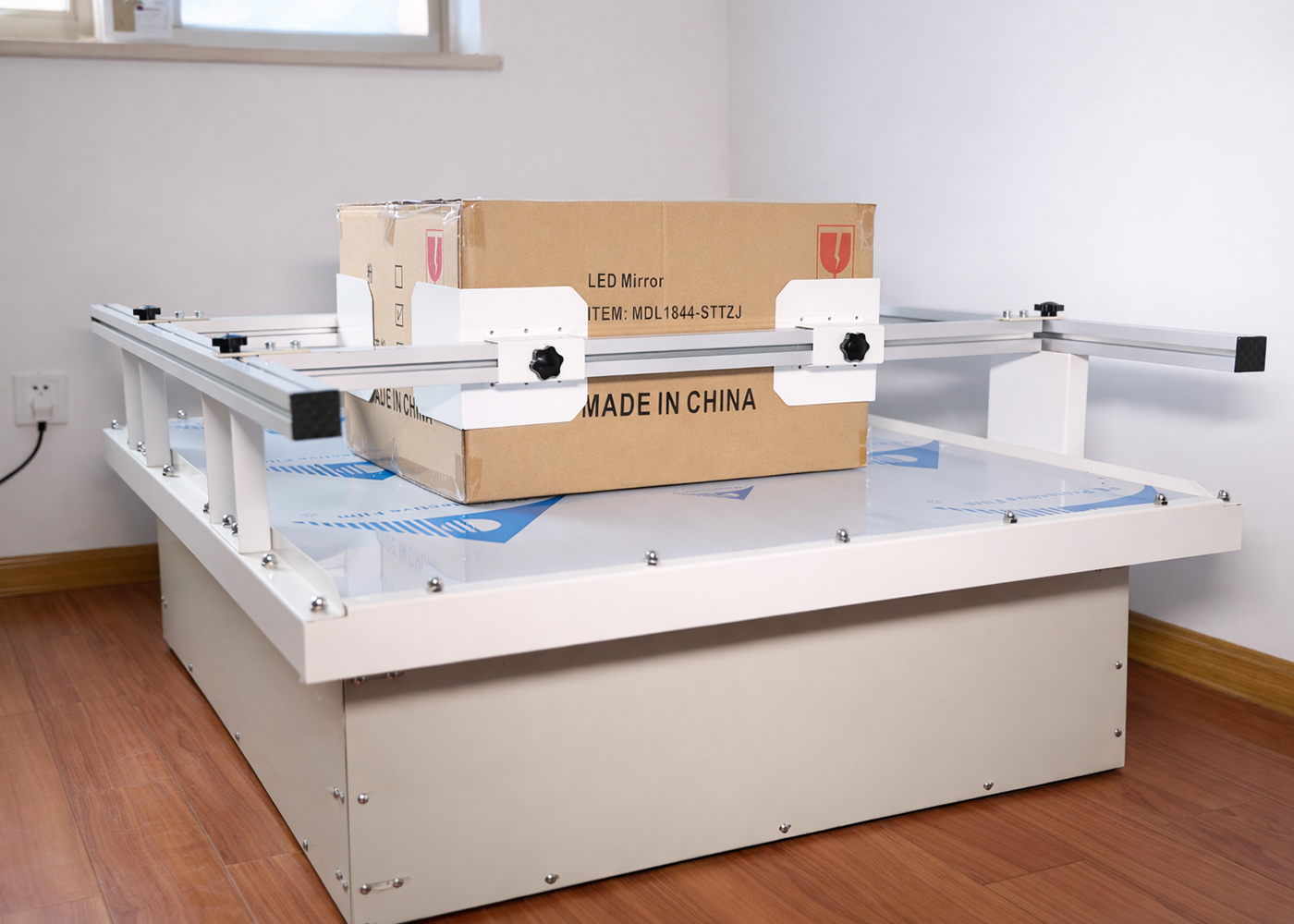

·External transportation: honeycomb cardboard box+corner protector+PP tape, optional wooden frame, ISTA 2A test passed
·Shipment inspection (FQC): 5% full inspection upon unboxing, 100% rework for appearance/function/accessories, and defective batches
Factory Certifications & Standards
Compliance Strength – The Key to Opening Global Markets. All certification reports can be accessed on-site by customers during factory inspections. No hiding, no temporary handling.
ISO 9001:2015
Quality Management System, Process Control/Continuous Improvement
BSCI
Business Social Standards, Labor Rights/Environmental Protection
FDA Registration
Cosmetic facilities in the United States, 21 CFR 700.27
CE (EMC+LVD)
EU market access, EN 60598/EN 55015
RoHS 2.0
Restriction of Hazardous Substances, 10 Restricted Substances Not Detected
FSC
Forest certified packaging, supply chain traceability
Factory Certifications & Standards
Compliance Strength – The Key to Opening Global Markets. All certification reports can be accessed on-site by customers during factory inspections. No hiding, no temporary handling.

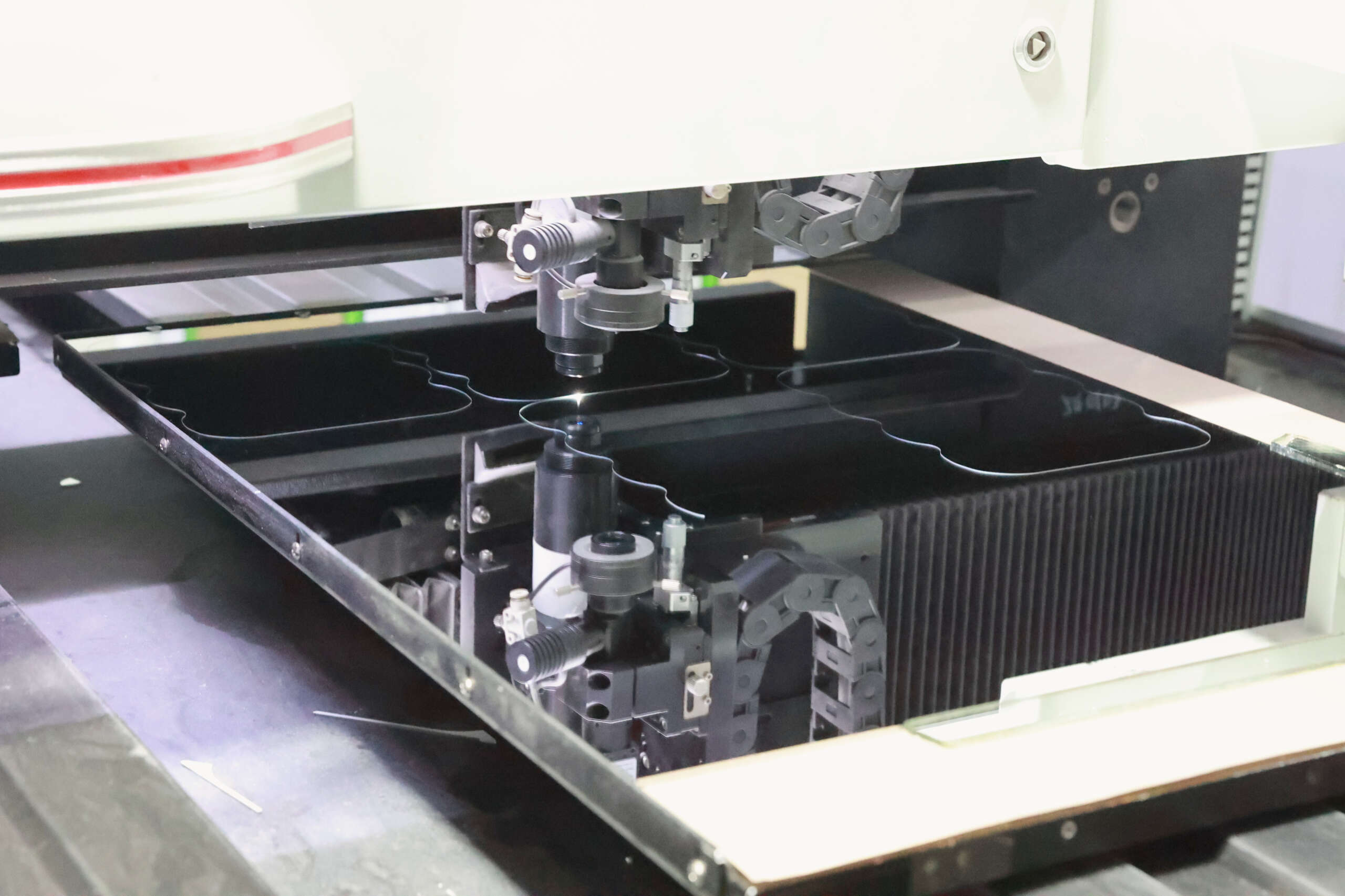

Fully automatic glass cutting line
Cutting accuracy ± 0.1mm, speed 120m/min
CNC machining center
5-axis linkage, positioning accuracy ± 0.05mm

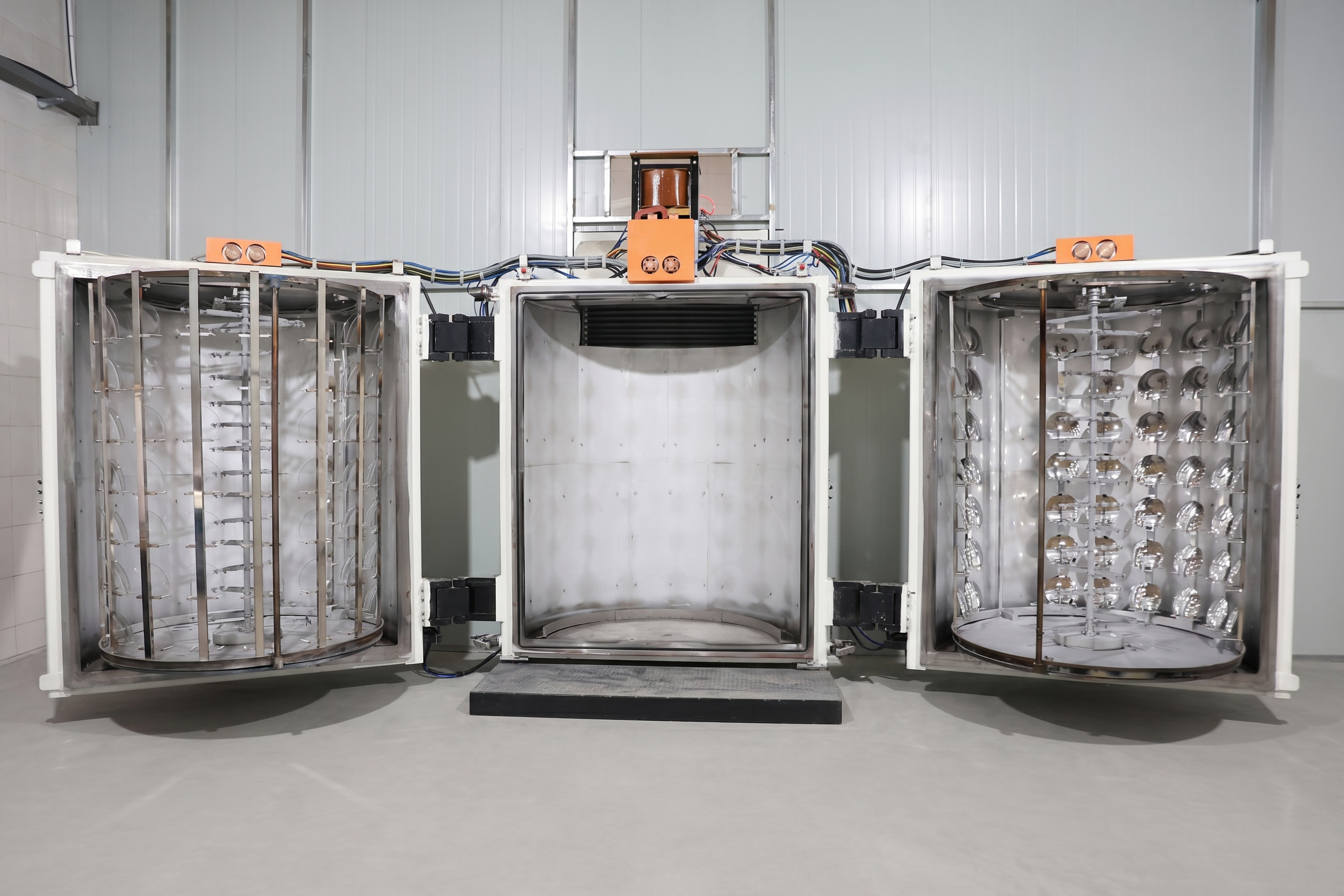

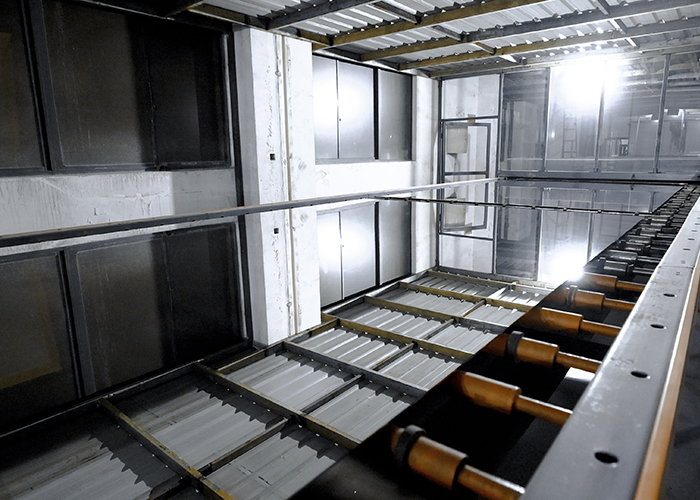

Vacuum coating mirror line
Coating uniformity ± 3%, production capacity of 5000 ㎡/day

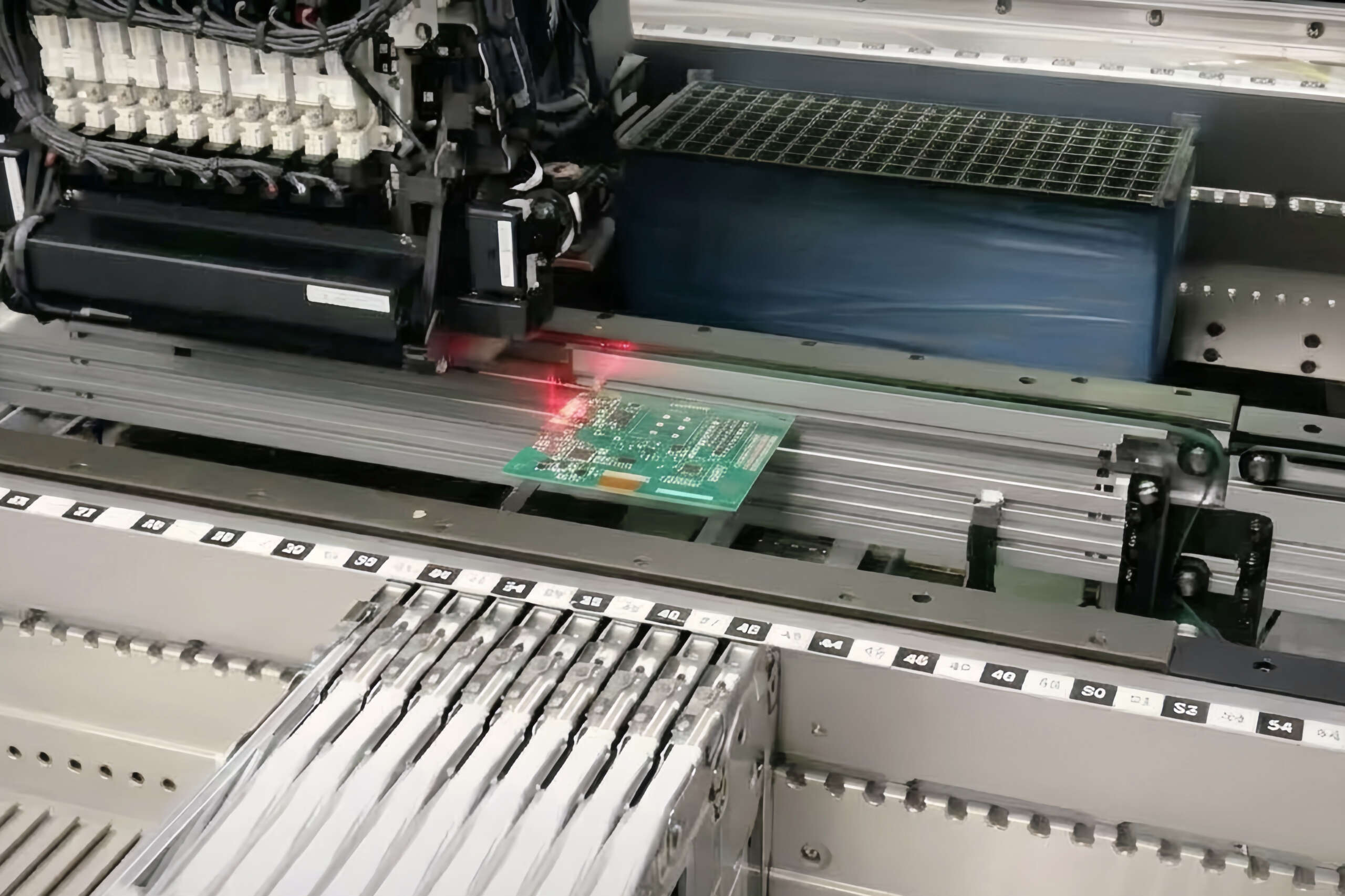

SMT line
Mounting speed of 80000CPH, accuracy of ± 0.035mm

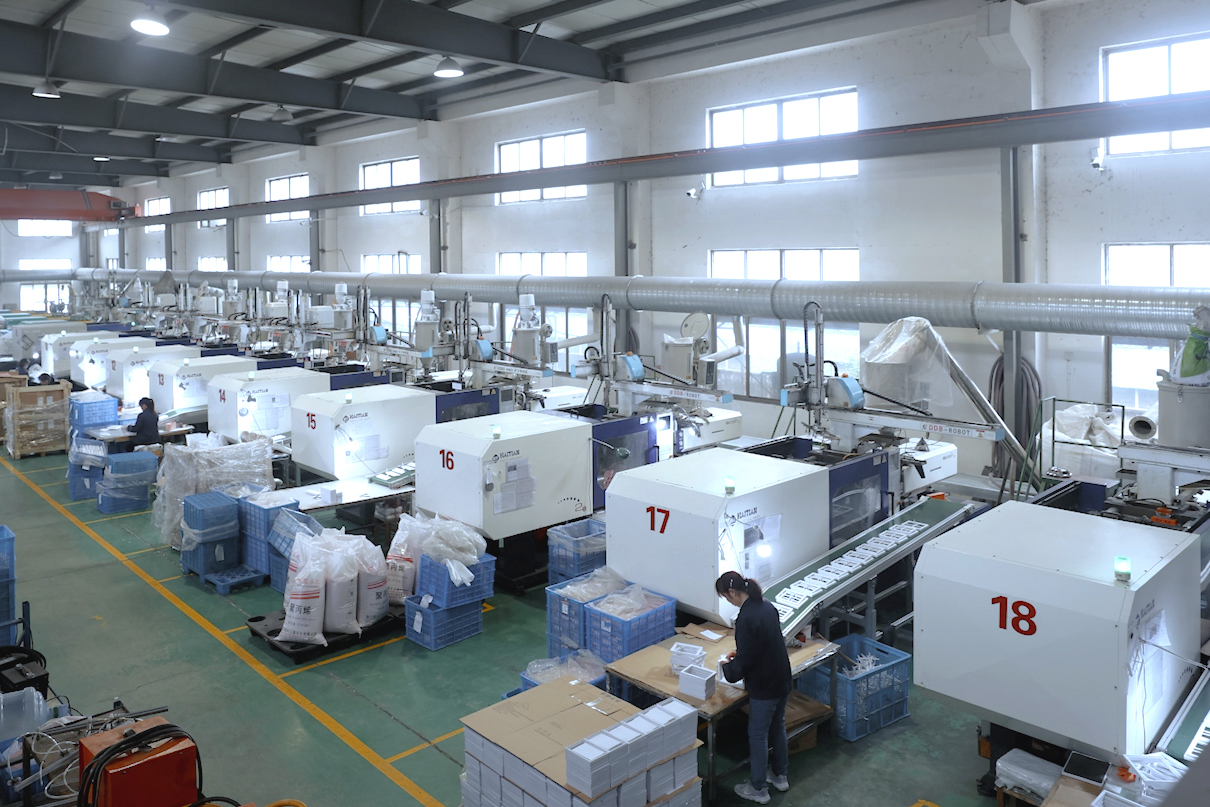

Injection molding machine
Locking force 380T, suitable for frame/base

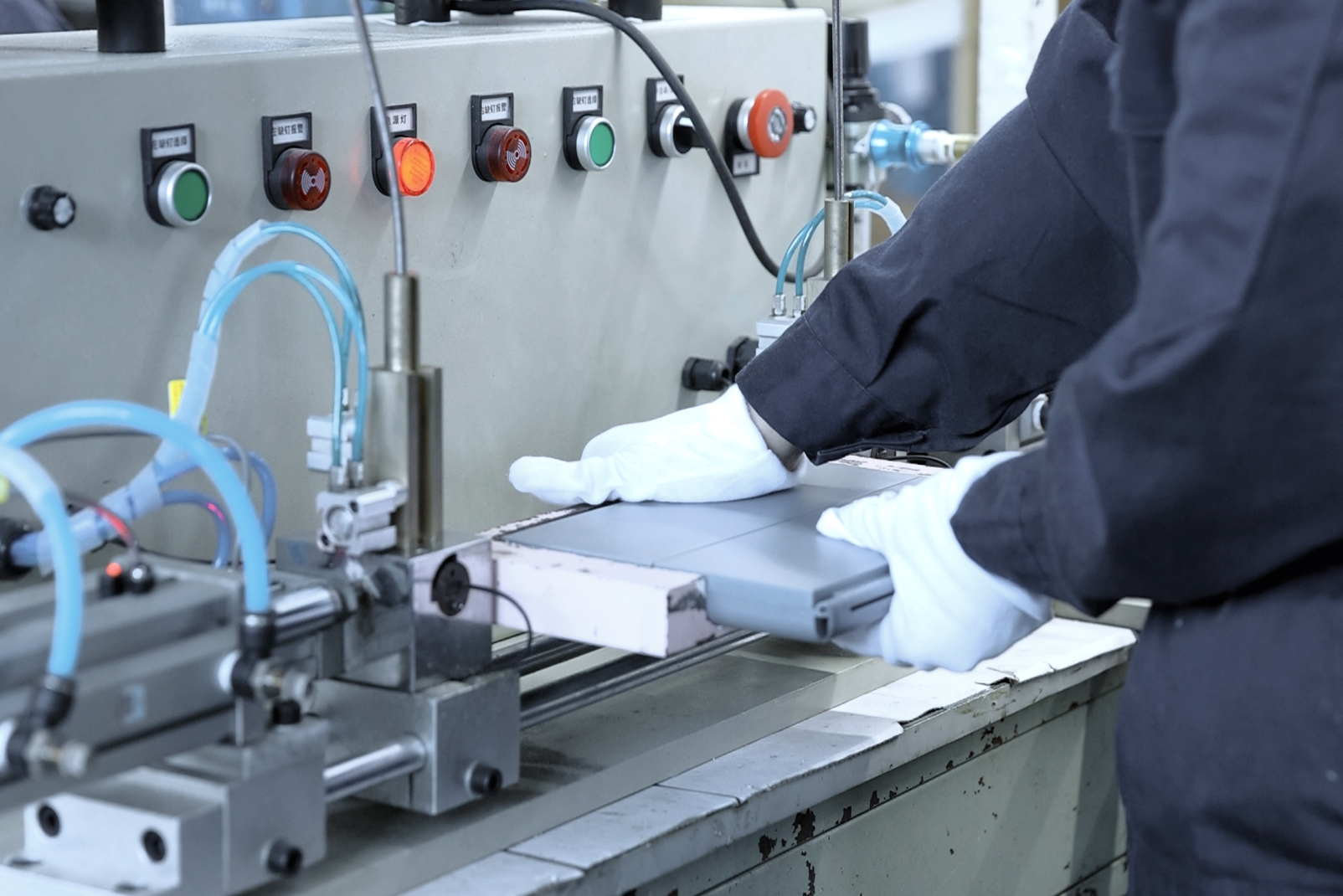

Automated assembly line
Modular design, changeover time<30 minutes
Testing Laboratory
Electrical/Optical/Environmental/Mechanical Full Dimension

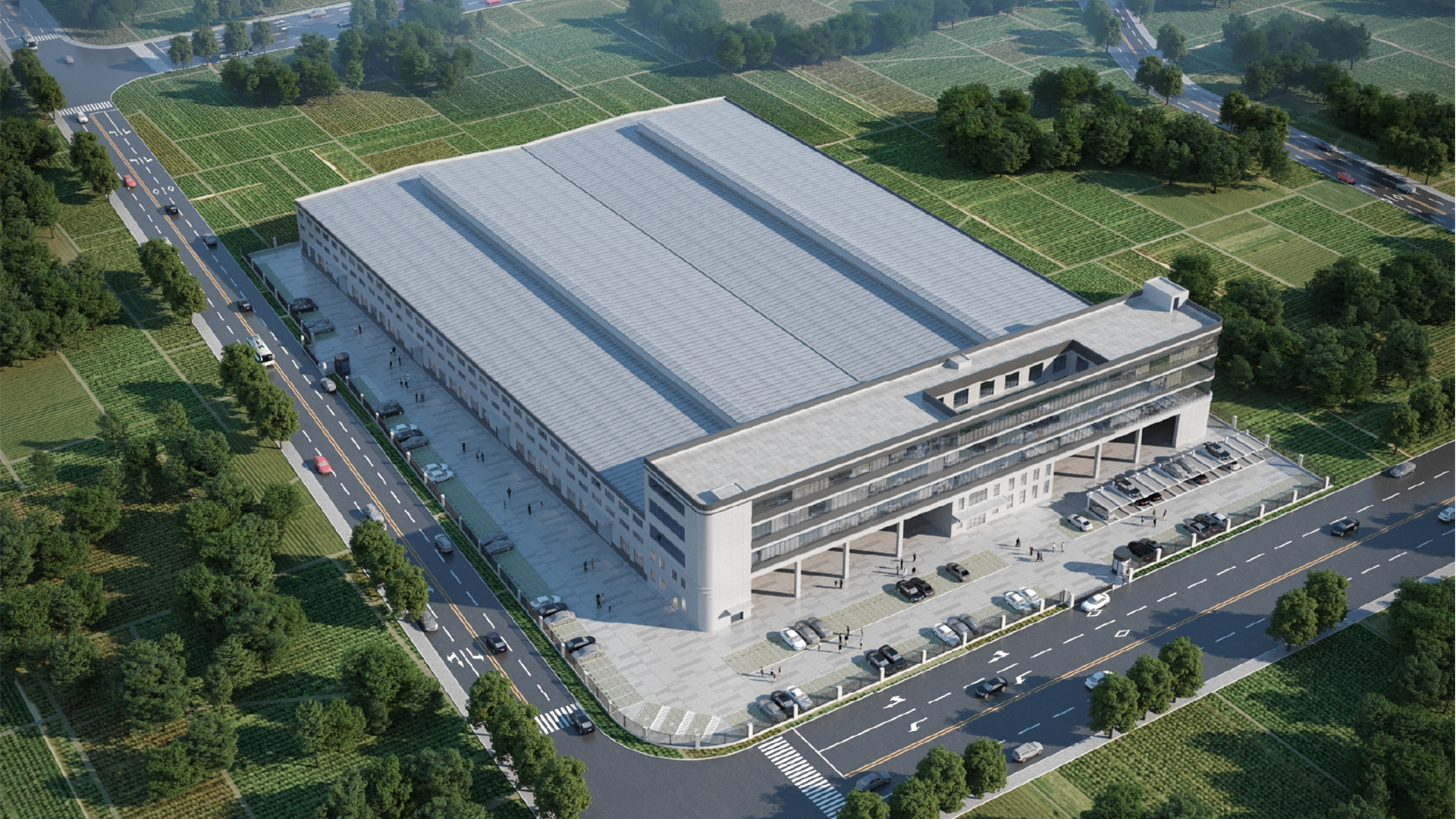

Factory scale:
·Total area: 18000 square meters (production 12000 square meters+storage 4000 square meters+office 2000 square meters)
·Employees: 320 people (technical/quality inspection accounts for 35%)
·Shift: Two shifts, starting 26 days a month
Transparency in Action — See It Yourself
·Real time video factory inspection: Live broadcast of production line, designated viewing for any process, arranged within 24 hours
·Sample testing report: Third party SGS/BV report is attached with the goods, provided by default
·Production progress dashboard: Exclusive customer portal, real-time order status, activated upon placing an order
·On site factory audit: Shenzhen/Dongguan dual base, accompanied throughout the process, with a 3-day advance appointment
From Our Factory to Your Market — Timeline
Delivery certainty – visualized delivery time. Urgent order channel: 7-day delivery (limited to inventory public model payments,+15% urgent fee)
01.
Order Confirmation (Day 1-3)
Contract/Deposit → Design Confirmation
02.
Complete set of materials (Day 4-10)
IQC inspection, production collaboration
03.
Production Execution (Day 11-20)
Stage1-4 Parallel Homework
04.
Assembly Test (Day 21-35)
Stage5-6， 100% full inspection
05.
Packaging and Storage (Day 36-40)
FQC/OQ， System filing
06.
Logistics shipment (Day 41-45)
Sea/air freight, release of bill of lading
FAQ — Manufacturing Deep Dive
Q1: What is your actual monthly capacity?
120000 standard mirrors, with a peak of up to 150000 mirrors (three shifts). 6000 sets of LED modules are self-produced per day, without relying on external purchases, and the delivery time is controllable.
Q2: How do you handle quality issues if they occur?
Level 3 response: ① Reissue and replace within 48 hours; ② Root cause analysis of 8D report; ③ If it is a systemic issue, initiate quality traceability and recall the same batch. In the past three years, there have been zero major quality accidents.
Q3: Can I request specific production lines or equipment for my order?
Yes, it is. A-class customers can lock in dedicated production lines and isolate the entire process from raw materials to finished products to ensure brand exclusivity and consistency.
Q4: How do you ensure consistency across large orders (10,000+ pcs)?
Four fold guarantee: ① Mold life management (500000 mold replacement warnings for steel molds); ② SPC control of process parameters; ③ First article inspection last article comparison; ④ Batch retention samples, traceable within the warranty period.
Q5: What is your approach to sustainable manufacturing?
ESG data for 2024: Solar power accounts for 35%, wastewater recycling rate is 90%, and packaging material recycling rate is 100%. We can provide carbon footprint reports to help your green brand story.
